Lightweight Fill for Sustainable Design and Elevated Green Spaces

EPS Geofoam is a versatile solution for architects, contractors, and landscape designers who need a lightweight, stable fill material for complex landscape elevations, rooftop gardens, and green roof systems. Its engineered strength and ease of use make it ideal for shaping contours, building raised planters, forming terraces, or creating insulated platforms—all without adding significant weight or requiring deep structural support.

From urban rooftops to hillside gardens, Geofoam enables high-impact design with a fraction of the structural demand of traditional fill materials like soil, sand, or concrete.

Why Geofoam Is Ideal for Landscaping & Green Roof Applications

    • Lightweight Yet Strong
      Geofoam weighs 1%–2% as much as soil but provides sufficient compressive resistance to support vegetation, pavers, hardscaping, and pedestrian traffic. It’s ideal for load-sensitive structures such as parking decks, green roofs, or elevated plazas.
    • Fast & Flexible Installation
      Blocks arrive precut or easily trimmed on-site, allowing designers to create organic shapes, elevated planters, slopes, and drainage paths with minimal equipment. Geofoam can be sculpted quickly, without compaction delays.
    • Reduces Dead Load on Structures
      Green roofs and elevated landscape zones often require significant weight mitigation. Geofoam minimizes dead load on rooftops and podium slabs, helping engineers meet structural limits without compromising design intent.
    • Excellent Thermal Insulation
      EPS Geofoam adds R-value to green roof and landscape systems, improving thermal efficiency for the structure below. This is especially valuable in cold climates or for energy-efficient building certification programs like LEED.
    • Enhances Drainage Control
      Geofoam helps shape proper slopes for water runoff, integrating smoothly with drainage mats, root barriers, and waterproofing systems—essential for green roofs and permeable landscaping.
    • Resistant to Water, Mold & Rot
      Unlike organic fill materials, EPS does not absorb water, break down, or attract pests. It maintains its shape and function indefinitely beneath green roof membranes or landscape covers.

Design & Installation Considerations:

    • Layered Block Configuration
      Install Geofoam in staggered layers to match landscape design elevations or slope drainage properly toward scuppers and drains.
    • Surface Finishes
      Geofoam is typically covered with filter fabric, root barriers, and growth media. Overlays may include pavers, turf, wood decking, or stone.
    • Drainage Integration
      Proper slope is built into the foam layout to ensure water drains efficiently to collection systems. Compatible with all major green roof drainage mats.
    • Protection Measures
      While Geofoam is stable, it should be protected from prolonged UV exposure before coverage and isolated from hydrocarbon-based materials if uncoated.

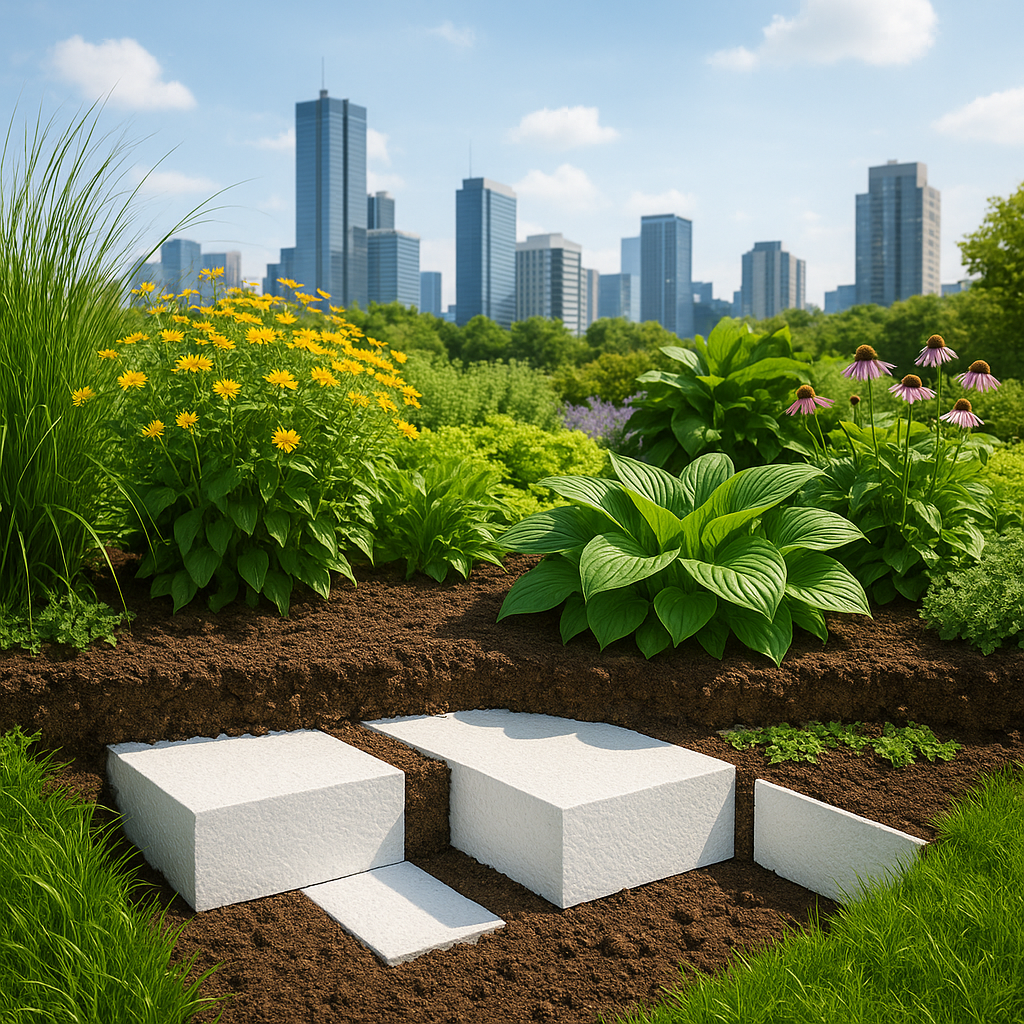

Landscaping & Green Roofs

Applications in Landscaping & Green Roof

A high-rise commercial building in Manhattan incorporated a 10,000-square-foot rooftop terrace with sloped lawn areas, planter boxes, and walking paths. Engineers used over 2,000 cubic feet of Geofoam to build up the grade and form curved slopes, all while maintaining a strict load limit of 40 psf on the structural slab. Installation was completed within days, and the green roof now serves as a public event space and wellness area for tenants.

Create sloped landscapes, elevated walkways, or garden beds on rooftops using lightweight Geofoam blocks that reduce structural loading without limiting creativity.

Install Geofoam above parking garages, concrete decks, or podium slabs to form mounded lawns, seating zones, or tree wells without stressing waterproofing systems or slab capacity.

On sloped sites, Geofoam is used to shape multi-tiered gardens, retaining walls, or planters with consistent elevation and stability—even in challenging soil conditions.

Geofoam forms the base layer beneath soil, vegetation, and pavers on commercial green roofs. It shapes drainage slopes and supports load without burdening the roof slab.

EPS foam can form contours and platforms beneath shallow ponds or decorative pools, providing structure while reducing the volume of water and hydrostatic pressure.

Advantages for Landscape Architects, Green Builders & Engineers

  • Simplifies elevation design without overloading structures
  • Reduces soil volume and load for green roofs and terraces
  • Compatible with paver, turf, or vegetative cover
  • Improves building energy performance
  • Reduces installation time and labor costs
  • Supports creative, organic landscape shapes
  • Non-toxic, inert, and environmentally friendly
  • Qualifies for LEED credits and other sustainability certifications

Transform Green Space, Without the Weight

EPS Geofoam is the foundation for creative landscape elevation and green roof design. It offers unmatched strength-to-weight ratio, flexibility, and ease of installation—making it the perfect tool for sustainable designers seeking performance, creativity, and long-term reliability.

Contact us today to explore how Geofoam can elevate your landscaping or green roof project—without weighing it down.
